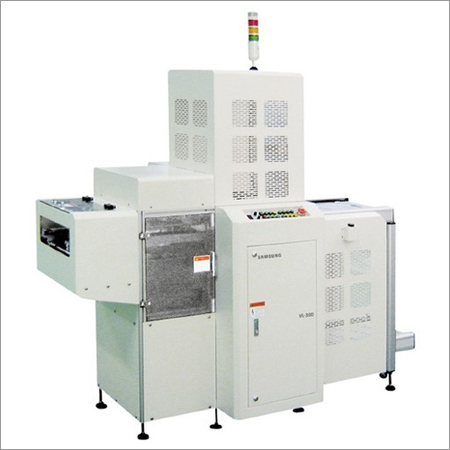

Vacuum & Magazine Loader

Vacuum & Magazine Loader
Vacuum & Magazine Loader
Product Code : VL-300
Product Description
By keeping track with the market developments, we are engaged in offering world class range of Vacuum & Magazine Loader. Our offered loaders are fabricated using high quality raw material and advanced techniques at vendor's end. These are designed with high precision in order to meet the international quality standards. The offered range is available in various sizes, shapes & related specifications at most acceptable price range to our precious patrons.

Features:
  • Easy handling
  • Low maintenance
  • Simple installation
  • Rust & water resistance
Specifications:

This magazine loader is used for both picking up bare PCBs by vacuum and feeding them to the downstream process line, and automatically feeding the PCBs loaded on the magazine rack to the downstream process line using a pusher.
  • Integrated functions for the combined use of Vacuum Pick-up and Magazine systems
  • Utilizes a side clamping process that avoids magazine distortion errors
  • Used in various ways for SMT-line, etc. according to the use
  • Various board feeding pitches available: 1~4 stages (10, 20, 30, 40 mm)
  • Strong vacuum pickup enables use with heavy PCBs
  • Vacuum pads are easily changed to suit the required task(6Ø, 8Ø, 10Ø)
  • Stable quality ensures improved productivity
  • Easy to operate
  • Bare Board Capacity: 250 pieces (based on 1mm thickness)
Options:
  • Time taken to change the magazine: 25 seconds
  • Automatic conveyor width adjustment and pusher position adjustment
  • Touch panel
