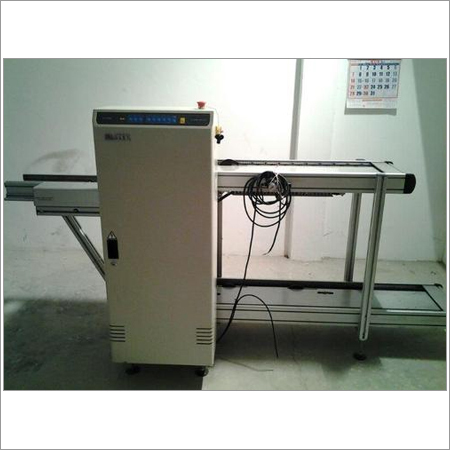

Multi Magazine Unloader

Multi Magazine Unloader
Multi Magazine Unloader
Product Code : SSS-XB-S3
Product Description
In order to satisfy the variegated demands of the client as well as the market, we are involved in providing an excellent assortment of Multi Magazine Un-Loader. These are manufactured using superior quality of raw material and latest technology at vendor's end. Moreover, these are also designed in compliance with the international quality standards. These are available in various sizes, dimensions and patterns as per the varied needs of clients.

  • Corrosion & heat resistance
  • Dimensional stability
  • User-friendliness
  • Easy maintenance
  • Strong, firm and stable design
  • User friendly membrane control panel
  • Top & bottom pneumatic clamps to secure magazine rack
  • No PCB breakage guaranty during loading & unloading
  • SMEMA compatible



This unit is used for unloading of PCBs

Time Feed PCB

seconds 6 Approx

Magazine Change Over Time

Approx.30 seconds

Power Source & Consumption

100-230VAC(specify)1ph, 300VA max

Air Pressure & Consumption

4-6 bar, 10 Ltr/min max

Conveyor Height

910±20mm (or specify)

Conveyor Direction

L→R / R→L(Option)

PCB Thickness

0.4 mm min

No. of Magazine

Upper Conveyor: 1 magazine, Lower Conveyor: 2 magazine

Indexing Pitch

1-4 (10mm pitch)
